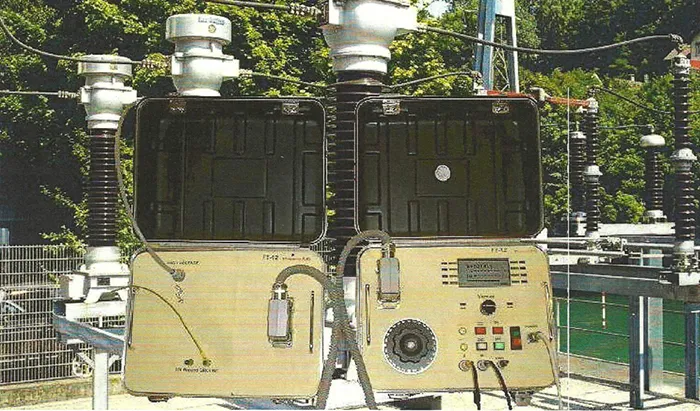

Full automatic 12kV capacitance and dissipation factor field test set. Consists of two units, weight only 50 kg total. measurements and operation according IEEE standard 62 built-in standard capacitor 100 pF / 12 kV built-in automatic interference suppression tanDelta uncertainty 1E-4 data storage feature: 10 files with up to 50 records each RS232 interface for data download Options: measurement of temperature and humidity; measurement of short circuit inductance of transformers; resonating inductor; oil test cell; adapter for ext. standard capacitors Extra Information
- CT/PT : รุ่น Series-W
- Capacitance and dissipation factor measuring systems : รุ่น F12
- artial discharge measuring systems : รุ่น PD-4

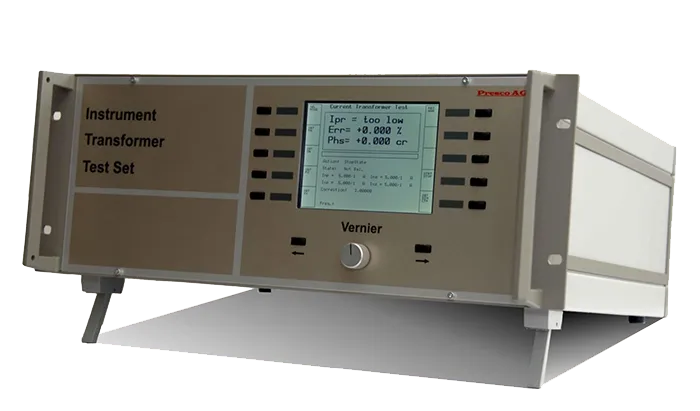

Automatic current and potential transformer test set for testing ratio error and phase displacement of instrument transformers. uncertainty of measurement 10ppm / 10urad broad range of corrections display of the results in all accepted dimensions remote controll and data transfer via RS232 interface Standard and Metrology variants available: CT + PT CT PT Technical Data Standard version Technical Data Metrology version

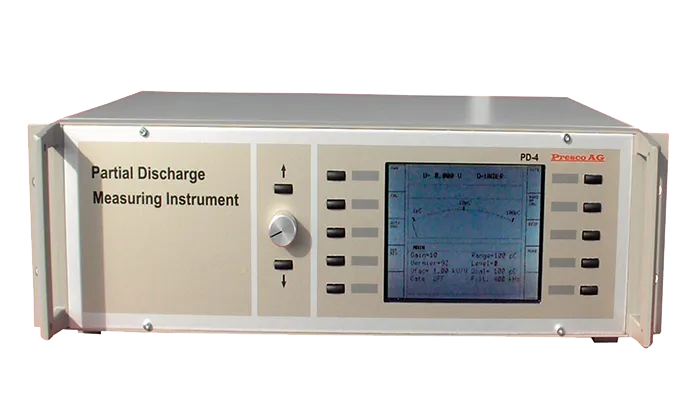

Partial discharge measuring systems : รุ่น PD-4
Professional partial discharge measuring instrument for diagnosis of high voltage insulation. Fulfils standard IEC 60270 selectable broad band filters tunable narrow band filters combined analog and digital display interference gating with 6 individualy adjustable filters auto calibration and auto ranging phase resolve pattern, in scope- and in finger print mode built-in RS232 interface for transfer of data and phase resolve pattern Extra Information Datasheet Front – Hi-Res (567kB)
